Integrated Square-Shaped Spiral Inductor

Application ID: 129

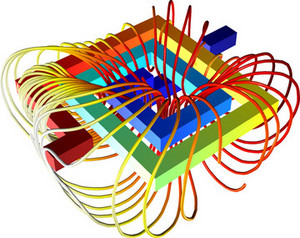

This model considers a square inductor that is used for LC bandpass filters in MEMS systems. The simulation calculates the self-inductance.

The first step in the modeling is to compute the currents in the inductor. These currents are the source for the magnetic flux computations, carried out in a second step.

This model example illustrates applications of this type that would nominally be built using the following products:
