One-Family House Acoustics Analyzer
Application ID: 30671

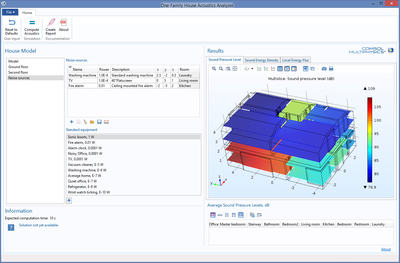

The One-Family House Acoustics Analyzer app is used to assess noise propagation in coupled rooms inside of a two-story house consisting of ten rooms. The app determines the sound pressure level (SPL) distribution in the house based on a number of sources that are interactively placed throughout the home.
It represents a classical room acoustics problem where engineers or architects want to determine the noise environment in a system of coupled rooms, such as homes, office spaces, or workshops. This is important when ensuring that an acoustic environment complies with noise and work regulations, for instance.
An engineer or architect can bring an app like this on-site and test different noise source scenarios and wall insulation characteristics. They can then compare the simulation results with actual measurements. The application lets you place, remove, and define multiple acoustic sources in different rooms of the house in order to determine the resulting SPL distribution.
The acoustics are modeled using the Acoustic Diffusion Equation physics interface in COMSOL Multiphysics, which is both fast and efficient at determining SPL distributions.
This application example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
