Ray Acoustics with 3D Source Extracted from a Vented Loudspeaker Enclosure

Application ID: 35571

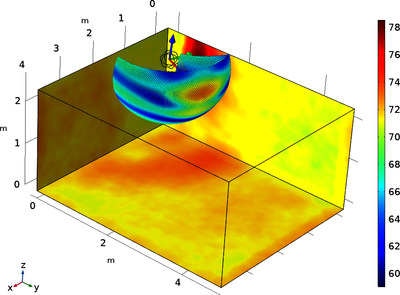

This model shows how the source directivity and phase can be extracted from a 3D FEM model of a loudspeaker (in this case, the Loudspeaker Driver in a Vented Enclosure model). The source characteristics are then used to define a ray acoustics source with the same spatial properties.

This model example illustrates applications of this type that would nominally be built using the following products:
