Thermal Insulation on Internal Boundary

Application ID: 69341

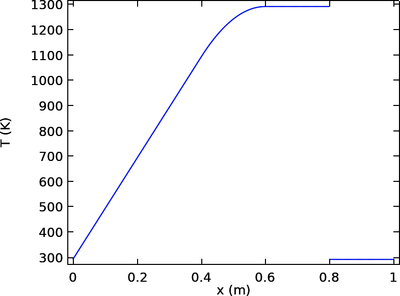

The purpose of this model is to introduce the Thermal Insulation feature available in Heat Transfer interfaces. Thermal Insulation is the default feature for external boundaries. An additional Thermal Insulation node is necessary in order to apply a thermal insulation condition to an internal boundary.

This model example illustrates applications of this type that would nominally be built using the following products:
