Wavelength Tunable LED
Application ID: 23341

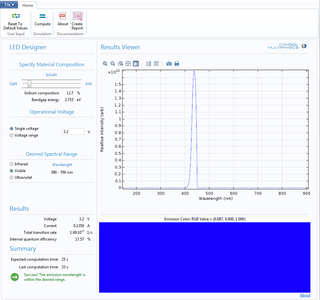

This application computes the emission properties of a AlGaN/InGaN LED. The emission intensity, spectrum, and efficiency are calculated for an applied voltage or as a function of voltage over a selected range. The indium composition in the light-emitting InGaN region can be varied in order to control the emission wavelength. When the emission occurs within the visible spectrum the corresponding color is displayed.
The Semiconductor Module is used to compute the carrier dynamics throughout the device and the corresponding electroluminescence.
This application example illustrates applications of this type that would nominally be built using the following products:Semiconductor Module
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
