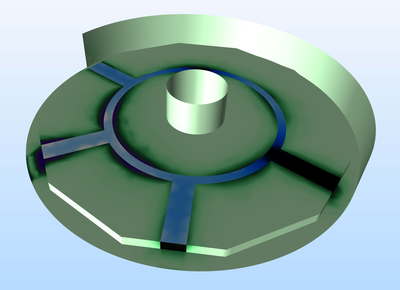

Rat-Race Coupler

Application ID: 11739


A 180° Ring Hybrid (Rat-Race Coupler) is a four-port network with 180° phase difference between two ports. It is cheaper to manufacture this type of microstrip line component compared to a wave guide 180° hybrid junction, so called magic-T. The objective of this model is to compute the S-parameters and to observe the matching, isolation, and coupling around the operating frequency.

This model example illustrates applications of this type that would nominally be built using the following products:
