Welding of a Titanium Plate

Application ID: 110151

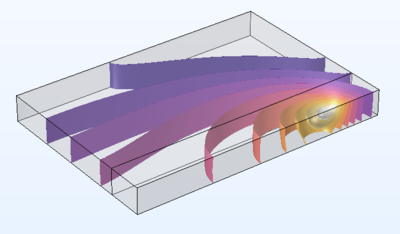

This model simulates arc welding of a titanium plate made from an alpha-beta titanium alloy. During a weld pass, the material experiences a thermal transient, including both heating and cooling. Phase transformations are modeled, and the evolution of the phase composition over time is computed.

This model example illustrates applications of this type that would nominally be built using the following products:
