Injectable Microbubbles in Hydrology and Healthcare
Fanny Littmarck | February 1, 2013
Microbubbles filled with oxygen can be injected into contaminated lakes to restore the water quality. Typically, water is purified via water-treatment plants, but this microbubble technique is both inexpensive and more environmentally-friendly in comparison. As seen in a COMSOL News 2011 article, oxygen microbubbles are a researcher’s way of copying nature’s own self-restoration mechanism for cleaning contaminated lakes.

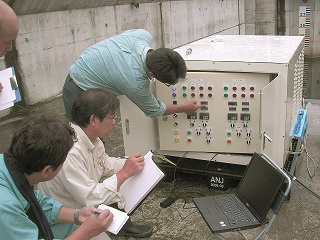

Microbubble generator. Image courtesy of Dr. Shuya Yoshioka.
Microbubbles in Water Purification
Created through high-speed mechanical agitation of water, the microbubbles contain a gas, oxygen, that will then be used to purify the contaminated water of lakes and dams. The small size of these bubbles (one micrometer) prevents the bubbles from floating to the surface at any rapid pace. In fact, the small buoyancy force acting on the bubbles is so small that the microbubbles are left submersed in the water for minutes or even hours. Another advantage with microbubbles is that a greater air-liquid interface surface area can be achieved for the same amount oxygen in larger bubbles. In short, the microbubble technique proves efficient for dissolving gas into water.
Dr. Shuya Yoshioka of Ritsumeikan University in Japan, tested his microbubbles with experiments at the Sounoseki Dam. In the article “Restoration of Lake Water Environments” in COMSOL News 2011, he explains that injecting oxygen microbubbles into lakes will both oxidize metals, causing them to precipitate, and stimulate microorganism activity to break down and eliminate organic material in the lakes. In the article, he states that “in these trials, it is necessary to predict all the environmental phenomena that might affect the body of water (wind, water flow, temperature, chemical reactions, and diffusion.” Because all of the equations governing these need to be solved simultaneously as opposed to sequentially, Dr. Yoshioka turned to COMSOL Multiphysics to find the most effective and cost-efficient way to inject the microbubbles. In simulating the water currents of the dam, the researcher discovered a large-scale recirculation region that he later took advantage of for seeding and diffusing the microbbubles throughout the whole dam. Using COMSOL Multiphysics and the CFD and Chemical Reaction Engineering Modules, he was able to determine where to add the bubbles to the water, and at what depth and rate.

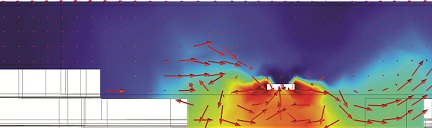

Simulating microbubbles: mass diffusion over a cross-section of the Sounoseki Dam reservoir. Image courtesy of Dr. Shuya Yoshioka.
After deploying his purification system, trial testing of toxin levels in the dam showed that the addition of oxygen microbubbles dramatically decreased the concentration of certain toxic substances (including nitrogen, phosphorus, iron, and manganese).

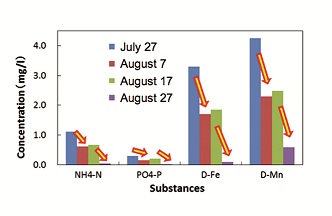

Trial testing results: concentrations of toxic substances reduced (note: the experiment was suspended during August 7-17). Image courtesy of Dr. Shuya Yoshioka.
Microbubbles in Healthcare
Water purification is not the only scenario where microbubbles can be of help. A relatively recent study indicates that microbubbles could be used to get oxygen into the body of a patient to keep organs from suffocating during a medical emergency. Similar to the ones used for purifying bodies of water, these bubbles would be injected into the human body and then dissolve to release the gas.
- “Restoration of Lake Water Environments” on pg. 54 in COMSOL News 2011
- “Micro Bubbles: A Trump Card for Quick Water Purification“
- “A Breath of Fresh Microbubbles“
