Your Multiphysics Solution for Computational Fluid Dynamics Simulations
Simulation Software for All Fluid Flow Applications
The CFD Module is the platform for simulating devices and systems that involve sophisticated fluid flow models. As is the case with all modules in the COMSOL Product Suite, the CFD Module provides ready-made physics interfaces that are configured to receive model inputs via the graphical user interface (GUI), and to use these inputs to formulate model equations. The particular physics interfaces that the CFD Module is equipped with enable you to model most aspects of fluid flow, including descriptions of compressible, nonisothermal, non-Newtonian, two-phase, and porous media flows – all in the laminar and turbulent flow regimes. The CFD Module can be used as a standard tool for simulating computational fluid dynamics (CFD), or in collaboration with the other modules in the COMSOL Product Suite for multiphysics simulations where fluid flow is important.
The CFD Module GUI grants you full access to all steps in the modeling process. This includes the following steps:
- Selecting the appropriate description of the flow, for example single-phase or two-phase, laminar or turbulent flows, etc.
- Creating or importing the model geometry
- Defining the fluid properties
- Adding source and sink terms, or editing the underlying equations of the fluid model, if required
- Selecting mesh elements and controlling the density of the mesh at different positions
- Selecting solvers and tuning them, if required

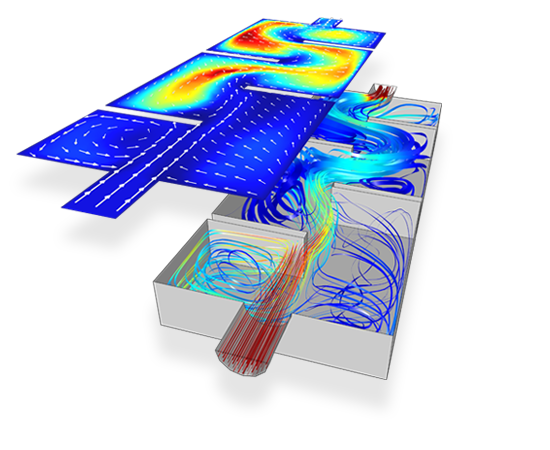

- Flow in a static mixer where the extent of mixing is observed through particle tracing.
- Flow field in a stirred, baffled mixer using the Rotating Machinery interface.
- Non-isothermal Flow: Simulation of a displacement ventilation system where the isosurfaces for temperature are plotted. The model simulates nonisothermal flow and turbulence using the k-epsilon model.
- Two-phase Flow: A circulated fluidized bed is modeled using the Euler-Euler model where solid particles are fluidized by a gas and transported through a vertical riser.
- Non-Newtonian Flow: The shear rate, dynamic viscosity and volumetric flow of a polystyrene solution and the volumetric flow for an equivalent Newtonian fluid, all as a function of pressure.
Turbulent Flow: Benchmark study of the SST Turbulence Model on flow past an airfoil. The image shows the computational (line) and experimental (marks) results for the pressure coefficient along the airfoil where experimental data was only gathered on the low-pressure side [Ref: N. Gregory and C. L. O’Reilly, “Low-Speed Aerodynamic Characteristics of NACA 0012 Aerofoil Section, including the Effects of Upper-Surface Roughness Simulating Hoar Frost,” A.R.C., R. & M. No. 3726, 1970].
- Non-Newtonian Flow: The shear rate, dynamic viscosity and volumetric flow of a polystyrene solution and the volumetric flow for an equivalent Newtonian fluid, all as a function of pressure.
Physics Interfaces Appropriate for Any Type of Flow
Tools for defining the different descriptions for fluid flow are packaged and available in easy-to-use physics interfaces. Under the hood, these interfaces define the conservation of momentum, mass, and energy equations that describe fluid flow, accounting for the contribution from multiphysics couplings to other physics. Furthermore, they formulate a stabilized form of these equations, which can be used by COMSOL to create finite element discretization for space and finite differences for time derivatives for stationary or time dependent problems. The stabilized formulations are adapted to the selected description and the functions for the fluid properties by the physics interfaces, which also suggest solver configurations and solver settings for the type of flow described. Tailor-made physics interfaces are available for the following types of fluid flow:
- Single-Phase Flow: The CFD Module solves multiple variations of the Navier-Stokes equations to model flows in all velocity regimes. This includes the modeling of low-velocity fluids, or creeping flow (Stokes flow), laminar and weakly-compressible flow, and turbulent flow. Turbulent flow is modeled using the Reynolds-Averaged Navier-Stokes (RANS) equations and includes the k-ε, low-Reynolds k-ε, k-ω, SST (Shear Stress Transport), and Spalart-Allmaras turbulence models.
You have the option to manipulate all of the variables in the Navier-Stokes equations and the terms in the turbulence models. You can, for example, include equations based on model variables from other coupled physics interfaces. Many additional tools exist for assisting in the solution process of turbulence models. Among these are tools for the specification of wall functions, including wall roughness, automatic boundary layer meshing, hybrid meshes, and other tools for adapting mesh density and placement.
- Nonisothermal Flow: Thermally-induced buoyancy forces are considered by default in both laminar and turbulent flows when coupled to heat transfer. The CFD Module includes ready-made multiphysics interfaces for nonisothermal and conjugate heat transfer. The module can combine arbitrary multiphysics couplings to define weakly compressible flows, i.e. flows with Mach numbers below 0.3.
- Compressible Flow: The CFD Module is also able to model compressible fluids for Mach numbers greater than 0.3, where temperature variations caused by heat transfer, compression work, or work done by friction forces, result in significant compressibility effects, like shocks, for instance. The built-in adaptive meshing capabilities within COMSOL Multiphysics help greatly with resolving shock waves and areas of great change in the fluid flow profile.
- Two-Phase Flow: Physics interfaces and supporting equations are at your disposal for modeling two-phase flow. When this includes tracking the moving interfaces separating two or more immiscible fluids, the CFD Module utilizes the Phase Field and Level Set methods.
The CFD Module also includes physics interfaces for dispersed two-phase fluid flow models for describing flows that contain suspensions of many particles, droplets, or bubbles through the Bubbly Flow, Mixture Model, and Euler-Euler Model methods. The latter method handles high concentrations of bubbles that collide frequently and contain significant variations in relative velocity between the phases. The Heat Transfer Module also includes interfaces for the modeling of condensation and humid air, where phase changes are described using built-in step functions in COMSOL Multiphysics.
- Porous Media Flow: With the CFD Module, you can also model the transport of single-phase and two-phase fluids in porous media, by utilizing Darcy's Law and Brinkman's extension to Darcy's Law. Darcy's Law is appropriate for porous media where the pores are small enough to negate viscous effects, so that flow is driven by a pressure difference, while the Brinkman equations include terms accounting for viscous effects. An internal condition also exists that allows for modeling the interface between free channel fluid flow and the porous media.
- Rotating Machinery: The Rotating Machinery interfaces include modeling tools to describe rotating parts that dynamically change the geometry, such as the vanes in a mixer or fins in a propeller rotating in a fluid domain. There is also a Frozen Rotor interface that approximates the rotation by including additional terms in the fluid flow equations instead of changing the geometry during the simulation. Using far less computational resources than solving for the actual rotation, this physics interface adds centrifugal or coriolis forces to the formulation of the stationary Navier-Stokes equations, and provides good approximations for modeling applications like turbines, centrifugal separators, and mixers. An interface for Swirl Flow is also available for modeling rotating flows. In this physics interface, an out-of-plane swirl velocity component is included for axisymmetric models yielding a three-dimensional velocity vector defined in a 2D geometry, which also reduces computational requirements compared to full 3D modeling.
- Thin-Film Flow: A specialized physics interface is included in the CFD Module to model the flow of liquids or gases confined in thin layers between two surfaces, or on the one surface, for example to model lubrication.
- Non-Newtonian Flow: The CFD Module includes the Carreau and Power-Law models, but also allows you to define your own equations or bring in external data to describe the viscosity and shear rate of polymer and other non-Newtonian fluids. You may, for example, define viscoelastic models in this way. Step functions are built into COMSOL Multiphysics, and can be utilized for modeling large or sudden changes in the fluid properties, for example to describe Bingham fluids.
- Flow Through Thin Screens: Modeling processes that include perforated plates, grilles, and wire-gauzes are made easier using the built-in Thin Screens feature. This includes correlations for refraction and resistance coefficients that consider the effects of flow through a screen, and before and after a screen for laminar or turbulent flow.
- Fluid Flow and Heat Transfer: The CFD Module includes a Conjugate Heat Transfer interface for describing fully coupled heat transfer in solids and fluids, including laminar and turbulent fluid flow. By default, this solves for nonisothermal flow and can be coupled to any other physics interface that includes temperature, such as interfaces for surface-to-surface radiation in the Heat Transfer Module, Joule heating, and heat of reactions in Chemical Species Transport interfaces. In addition, physics interfaces for heat transfer in porous media combine the conduction in the solid matrix to the conduction and convection in the fluid phase while accounting for the tortuous path taken by the fluid, and the heat dispersion this entails.
- Reacting Flow: A specialized interface that couples both laminar and turbulent flow to the transport of chemical species in dilute and concentrated solutions is included, and you can couple it with interfaces that describe chemical reaction from the Chemical Reaction Engineering Module
In addition to the built-in formulations, you can also define expressions that are arbitrary functions of the modeled variables, and type them into the edit fields for introducing source or sink terms, for describing material properties, or for defining boundary conditions. For example, you may want to define physical properties using your own functions to describe the influence of composition, temperature, shear rate, or any other model variable. You may also want to define boundary conditions and source or sink terms that are functions of the modeled variables or that couple to other physics. You can do this directly in the GUI, without the need for introducing cumbersome user subroutines. The ability to define arbitrary equations of the modeled variables, such as averaging over domain cross sections or in domain control volumes, also allows for the characterization of fluid flow through using different representations of the Reynolds, Mach, and Grashof numbers.
In a further step to adding source or sink terms and defining physical properties as functions, you can also manipulate the underlying equations in the previously described physics interfaces to modify the description of the flow and to create even more non-standard couplings to other physics interfaces.
Many of the physics interfaces also support sophisticated descriptions of boundary conditions. Apart from specifying Slip and No Slip boundary conditions, you can also set up walls to simulate Sliding and Moving Wall conditions, as well as walls that are Leaking and, even, Open, where the fluid is assumed to make its own free boundary. Wall functions and their relevant tuning parameters can be defined for turbulent models. For inlets and outlets, a velocity or a velocity profile can be configured along with Pressure, Stresses, or Mass Flow conditions, as well as a Periodic Flow boundary condition that links the outlet flow from one boundary to the inlet of another. Periodic boundary conditions useful when modeling a unit cell in a geometry consisting of an assembly of repetitive unit cells.
Unified Platform for Multiphysics and Multidisciplinary Simulations
Flow is an integral part of many different processes and applications, and must be understood and optimized often with respect to how it affects other processes. The effective cooling of a computer’s hard drive, the dispersion of energy within the damping film of an accelerometer, and the transport of species through the different parts of a chemical reactor are examples where fluid flow is a contributor to a process described by other physics. Yet, in reality, the heat emanating from the electronic devices affects the fluid's density. The accelerometer's elasticity imposes an oscillation on the flow, and the reactions change chemical composition and potentially the fluid flows' driving pressure. This means that you must also include their effects for a completely accurate description of the overall process.
COMSOL Multiphysics and the CFD Module help in describing such processes through the seamless coupling of all involved physics, and through allowing unhindered access to the model equations directly in the GUI. Also at your disposal are the two-way coupled fluid structure interaction (FSI) formulations. These allow you to model scenarios where the fluid deforms a structure, and where this structure's reaction to its deformation in turn influences the fluid flow. All the physics interfaces in the CFD Module can be coupled with any of the other modules in the COMSOL Product Suite to provide the standard platform for applications where computational fluid dynamics need to be considered.
COMSOL also provides modules that model flow in alternate ways to the CFD Module, but which can still be easily coupled to utilize the benefits from both. One example of this is the Pipe Flow Module, which models fully developed flow in 2D and 3D piping networks using edge elements, with one tangential average velocity component along the edges, for describing the pipe sections. This allows you to model flow in a pipe network connected to tanks in a process, but avoid meshing the cross section of the pipes in the network, which would result in large 3D meshes. COMSOL contains a feature that seamlessly allows the mapping of data from edges, to surfaces, and volumes, and vice versa, to connect pipe networks to fully meshed 2D or 3D geometries. In this way, you can consider the computational fluid dynamics properties of a certain unit within a whole network of piping, and adjust the operating conditions of both in connection to each other.
Since all physics are modeled using the same, standard graphical user interface and workflow, CFD engineers can easily communicate with other engineers analyzing different characteristics of the same component or process, such as structural, electrical, or chemical properties. All you have to do is send over the file, switch off the physics not being investigated, add another physics interface or two, and continue modeling. And, of course, couple these new physics interfaces to the one describing fluid flow for a full multiphysics simulation of the component or process.
Approaching Your Final CFD Solution in Steps
Simulating computational fluid dynamics in equipment or processes is often a workflow where you approach a final, accurate solution in steps. The CFD Module contains many different tools, features, settings, and interfaces to assist you through all the steps of your workflow.
The CAD Import Module or one of the LiveLink™ products assists you in bringing in the geometry of your part, component, or process to be simulated from a third-party CAD software. These products allow you to subsequently manipulate your geometry to help reduce small features and artifacts that may not be important for the flow, but that complicate the meshing of CFD simulations.
Once you have your 3D CAD design within the CFD Module, you may not want to immediately launch yourself into performing 3D simulations. COMSOL Multiphysics supports the ability to create a 2D modeling workspace from 3D geometries. By working on a 2D geometry, such as a representative cross section, you will be able to familiarize yourself with a number of the parameters in your simulation. Without using the large computational resources that a 3D model would require, you can:
- Investigate the effect fluid properties have on the overall simulation
- Decide what the appropriate turbulence model to use is
- Determine the placement of appropriate meshing and boundary layer meshing
- Select the solvers and settings to use
- Study the effects of multiphysics couplings on the fluid flow
- Estimate the accuracy you may expect from a 3D model
With a greater understanding of your system, you can then perform the full 3D simulation using the knowledge and optimized settings gained from the 2D model. This feature is also especially useful for treating 3D CAD designs that are symmetric or axisymmetric, avoiding 3D modeling altogether, and reducing the computational requirements substantially.
Tools for Providing Flexibility within Meshing and Robust Solving
Meshing is often a critical step in modeling computational fluid dynamics in devices or processes. The mesh must be good enough to provide accuracy, but not too fine so as to drain computational resources. COMSOL Multiphysics provides many different tools to ensure a good mesh for fluid flow simulations. This includes creating unstructured, structured and swept meshes, which allow for flexibility in considering the modeling domain's geometric dimensions and their ratio, and the effects on the flow's directions. The CFD Module also utilizes boundary layer meshing to insert structured layers of mesh along boundaries such as walls, and integrate them into surrounding structured or unstructured meshes to become an overall hybrid mesh.
The CFD Module makes use of most of the linear, nonlinear, time-dependent, and parametric solvers found within COMSOL Multiphysics. This includes direct solvers for solving 2D and small 3D models, which have good abilities to easily converge, and iterative solvers for larger or more complex models. Preconditioning and multigrid solvers are available to work in collaboration with other solvers to ensure solutions. Advanced solver functionality, such as the inclusion of crosswind and streamline diffusion, and smoothing methods, are available, and their values can be fine-tuned along with most of the other solver settings. The CFD Module also utilizes elements of different orders in one and the same simulation, and may apply lower order elements to solve one variable, such as pressure, and higher order elements to solve the other variables.
The solver scheme also allows for better approximations of initial values for a solving process. This includes setting up solver schemes that will solve for an easier description of flow, such as the laminar flow field within a certain modeling domain, and apply this solution as the initial guess to a turbulent flow description. A solution using the Frozen Rotor interface can be used as the initial guess to a full simulation of the rotating modeling domain, saving you a lot of computational resources.
Extract Accurate and Descriptive Data from CFD Simulations
The CFD Module calculates properties intrinsic to fluid flow, such as: flow patterns; pressure losses; forces on objects subjected to flow, drag, and lift; temperature distribution; and variations in fluid composition in a system. Moreover, it provides qualitative postprocessing involving surface, streamline, ribbon, arrow, and qualitative particle tracing plots as well as animations. Data from all parameters and variables in the underlying equations, and extra terms are accessible to be extracted and plotted against any other parameter or variable. This includes postprocessing derived values, like drag and lift coefficients. By including and coupling physics from the Particle Tracing Module in the solving of your CFD applications, you can consider the effects of particles on both the flow itself (Lagrange-Euler), and on each other, through collisions and their own momentum.
Numerical Simulation-Based Topology Optimization Leads to Better Cooling of Electronic Components in Toyota Hybrid Vehicles
Toyota Research Institute of North America, MI, USA
The Toyota Research Institute in Ann Arbor drives cutting-edge research in energy efficiency, mobility infrastructure, and safety. Here, Ercan Dede and his team are designing heat sinks (or cold plates), which are affixed to fragile electrical systems and other applications in Toyota’s hybrid vehicles. Their simulations simulate the cold ...
Modeling Optimizes a Piezoelectric Energy Harvester Used in Car Tires
Alexander Frey and Ingo Kuehne Siemens Corporate Technology, Munich, Germany
Siemens is a technology company working with electronics and electrical engineering in industry, energy, and healthcare. Researchers at Siemens Corporate Technology are experimenting with an energy harvesting MEMS (Micro Electro-Mechanical System) generator. In collaboration with Continental AG, they are designing a MEMS device for use as a Tire ...
Sea Floor Energy Harvesting
Nagi Elabbasi, Brentan Alexander, and Stuart Brown Veryst Engineering, Needham, MA, USA
Veryst Engineering has provided design solutions for a variety of industries in the field of energy harvesting. One of their current projects is working on ocean floor sensors, used in naval applications, environmental monitoring, earthquake monitoring, and oil exploration, which presently run on battery-power requiring expensive battery ...
The Burning Need for Modeling
Gianluca Argentini Riello Burners Legnago, Italy
Riello Burners manufactures high-efficiency low maintenance burners for use in residential and commercial heating applications, as well as in industrial processes. Proper ventilation is crucial for a burner because it maintains appropriate air flow into the combustion head where the flame is located. When designing the fan for any burner, there ...
Magnets Improve Quality of High-Power Laser Beam Welding
M. Bachmann, V. Avilov, A. Gumenyuk, and M. Rethmeier BAM Federal Institute For Materials Research and Testing Germany
High-power laser beam welding uses a localized heat source to achieve narrow deep welds and high welding rates. Engineers run into some difficulties because the use of a localized heat source often results in the distortion of metal components; spattering and the ejection of droplets from the weld pool results in underfills, undercuts, craters, ...
Cluster Simulation of Refrigeration Systems
Stephen Codyer & Mehdi Raessi Department of Mechanical Engineering UMass Dartmouth Dartmouth, MA Jessica Currie & Vladimir GoldsteinSunwell Technologies, Inc., Woodbridge ON, Canada
Sunwell Technologies Inc. produces and distributes the slurry ice (Deepchill™) that is an environmentally-friendly way to refrigerate foods and other items in trucks and the like. They commissioned the Computational Multiphase Flows group at the University of Massachusetts, Dartmouth (UMass Dartmouth) to provide simulation support to the ...
Silent Air Cooling: A New Approach to Thermal Management
Nels Jewell-Larsen, Tessera Technologies, CA, USA
Removing heat from electronic devices is a necessity that up until now was achieved by rotary fans. Tessera, a company that delivers innovative miniaturization technologies and products for next-generation electronic devices, developed a replacement for rotary fans that can satisfy demanding space and noise constraints. They designed a silent air ...
A Smooth Optical Surface in Minutes
Anthony Beaucamp Zeeko Ltd Leicestershire, UK
Zeeko Ltd is a technology company that manufactures corrective polishing machines for optics and other surfaces. They are presently researching fluid jet polishing (FJP), which pumps a mixture of water and abrasive particles through a nozzle onto a work piece. Unfortunately, FJP tends to introduce waveforms on to the polished surfaces, which in ...
The Science of Water Screening
Ehrich Shaw Johnson Screens New Brighton, MN
Johnson Screens® are the manufacturers of steel screens that impede debris from lakes and rivers from entering pipes and valves that will utilize the water. Their task is to provide application-specific screens that must be customized to the environment they are operating in. Often this means taking into account the characteristics of the debris ...
Restoration of Lake Water Environments
Shuya Yoshioka Ritsumeikan University Shiga, Japan
Human activity steals oxygen from natural water sources such as lakes and this oxygen-deficient water often contains high levels of toxic substances such as metals and organic material. Thus the number of lakes that can be used as a source of water is reduced, straining the available resources and creating a need for water-treatment plants of ...
This model is intended as a first introduction to simulations of fluid flow and conjugate heat transfer. It shows you how to: Draw an air box around a device in order to model convective cooling in this box, set a total heat flux on a boundary using automatic area computation, and display results in an efficient way using selections in data sets.
Syngas Combustion in a Round-Jet Burner
The model simulates non-premixed turbulent combustion of syngas (synthesis gas) in a simple round-jet burner. Syngas is a gas mixture, primarily composed of hydrogen, carbon monoxide and carbon dioxide. The name syngas relates to its use in creating synthetic natural gas. In the model, syngas is fed from a pipe into an open region with a slow ...
Droplet Breakup in a T-junction
Emulsions consist of small liquid droplets immersed in an immiscible liquid and widely occur in the production of food, cosmetics, fine chemicals, and pharmaceutical products. The quality of the product is typically dependent on the size of the droplets. Simulating these processes can help in optimizing these droplets as well as other process ...
Circulated Fluidized Bed
This is model of a circulated fluidized bed, which is a very common apparatus in the food, pharmaceutical, and chemical processing industry for solid-fluid contacting. The dispersed phase, consisting of solid spherical particles, is fluidized by air and transported upwards through a vertical riser. Upon reaching the outlet, the dispersed phase is ...
Inkjet Nozzle - Level Set Method
Inkjet printers are attractive tools for printing text and images because they combine low cost and high resolution with acceptable speed. Designers can vary several parameters to modify a printer’s performance. Simulations can be useful to improve the understanding of the fluid flow and to predict the optimal design of an inkjet for a specific ...
Laminar Flow in a Baffled Stirred Mixer
This model exemplifies the use of the Rotating Machinery interface, which allows you to model moving rotating parts in, for example, stirred tanks, mixers, and pumps. The Rotating Machinery interface formulates the Navier-Stokes equations in a rotating coordinate system. Parts that are not rotated are expressed in the fixed material coordinate ...
Capillary Filling - Level Set and Phase Field Methods
This example studies a narrow vertical cylinder placed on top of a reservoir filled with water. Because of wall adhesion and surface tension at the air/water interface, water rises through the channel. Surface tension and wall adhesive forces are often used to transport fluid through microchannels in MEMS devices or to measure, transport and ...
Water Purification Reactor
Water purification for turning natural water into drinking water is a process constituted of several steps. At least one step must be a disinfectant step. One way to achieve efficient disinfection in an environmentally friendly way is to use ozone. A typical ozone purification reactor is about 40 m long and resembles a maze with partial walls or ...
Separation Through Electrocoalescence
Applying an electric field across a suspension of immiscible liquids may stimulate droplets of the same phase to coalesce. The method known as electrocoalescence has important applications, for instance, in the separation of oil from water. To model electrocoalescence, you need to solve the Navier-Stokes equations, describing the fluid motion, ...
In general, there are two classes of ventilation: mixing ventilation and displacement ventilation. In displacement ventilation, air enters a room at the floor level and displaces warmer air to achieve the desired temperature. Heating sources in the room can include running electronic devices, or inlet jets of warm air. A potential issue with the ...
