Thermal Connection, Facing Boundary

Application ID: 110951

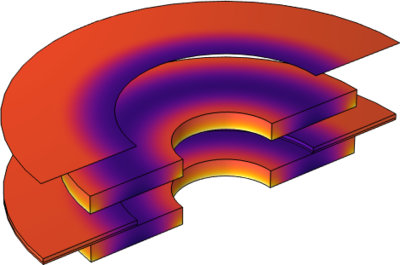

This tutorial model demonstrates the use of the multiphysics coupling feature Thermal Connection, Layered Shell, Surfaces. In this model, one layered shell is connected to heat domains by a facing boundary. The results obtained with the Heat Transfer in Shells interface are compared with those obtained with the Heat Transfer in Solids interface on the equivalent solid geometry.

This model example illustrates applications of this type that would nominally be built using the following products:
