Impedance Analysis of a Pot Core Inductor

F. Giovanardi [1],
[1] MD Microdetectors, Modena, Italy
Published in 2016

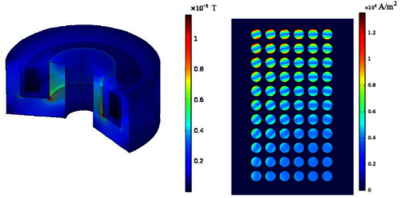

This work develops a methodology based on the application of finite element method in the frequency domain: the purpose is to evaluate electromagnetic parameters of a pot-core inductor. The knowledge of the electromagnetic parameter is very important for several reasons, for example it is useful to choose the frequency where the device has the best performances or to predict the value of the inductance or simply to create a lumped equivalent circuit model to insert a more complex circuit.
