Duct with Right Angled Bend

Application ID: 67601

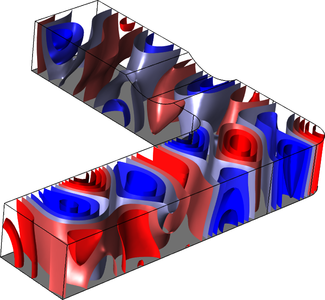

In this tutorial the acoustic behavior of a duct or waveguide with a right angled bend is analyzed. The model uses port boundary conditions at the inlet and outlet. The ports can capture and treat non-plane propagating modes in waveguides, extending the analysis above the first cutoff frequency. The transmission loss and the scattering coefficients of the system are determined.

This model example illustrates applications of this type that would nominally be built using the following products:
