Nonlinear Slit Resonator
Application ID: 47171
In many applications, acoustic waves interact with surfaces that have small perforations or slits. This can be in muffler systems; in soundproofing structures; in liners for noise suppression in jet engines; or in grilles and meshes in front of, for example, miniature speakers in mobile devices.
At medium to high sound pressure levels, the local particle velocity in the narrow region of the perforate or slit can be so large that the linear assumptions of acoustics break down. Typically, vortex shedding takes place in the vicinity of that region. This leads to nonlinear losses and in audio applications also nonlinear distortion of the sound signal. The nonlinear effects are sometimes included through semiempirical parameters in analytical transfer impedance models for perforates.

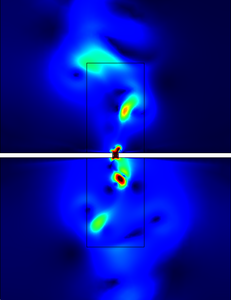

In this tutorial, a narrow slit is located in front of a resonator volume and the losses are modeled directly. The model couples pressure acoustics and the Laminar Flow interface in a transient simulation in order to model the complex nonlinear losses associated with the vortex shedding. The incident acoustic field has an amplitude corresponding to 155 dB SPL.
Learn more in the related blog post: "Modeling Aeroacoustics with the Linearized Navier-Stokes Equations"
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
