Nonlinear Transfer Impedance of a Tapered Orifice
Application ID: 99471

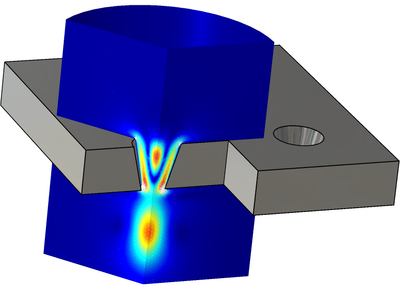

This model analyzes the nonlinear transfer impedance of a tapered orifice that can be part of a perforate or microperforated plate (MPP). The analysis is carried out for various degrees of tapering of the perforate and for a frequency range.
A linear analysis is set up in the frequency domain using the Thermoviscous Acoustics, Frequency Domain interface. The nonlinear analysis is carried out in the time domain using the Thermoviscous Acoustics, Transient interface and the Nonlinear Thermoviscous Acoustics Contributions feature. The linear analysis is also carried out in the time domain for selected frequencies.
The results are compared with analytical and semi-analytical models in the simple straight cylindrical perforate configuration (circular orifice).
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
