Radial Magnetic Coupler in 3D
Application ID: 17331

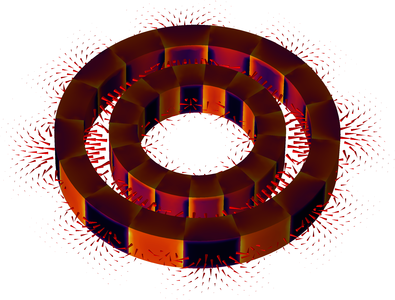

Radial magnetic coupling between two permanent magnet rotors is modeled using the Rotating Machinery, Magnetic interface. The permanent magnets in the inner and the outer rotors are outward flux-focused and inward flux-focused to maximize the coupling torque.
