Radome with Double-layered Dielectric Lens
Application ID: 12027
A radome minimizes losses and improves radiation characteristics of an antenna through its design. The structure can be optimized to minimize the transmission loss and also designed to improve radiation characteristics including antenna directivity and side lobes.

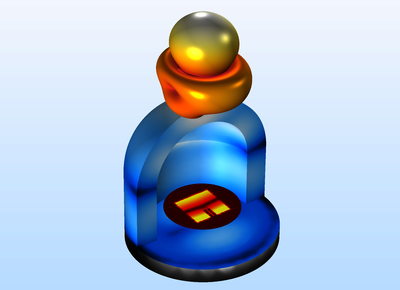

Shown in the model is the surface current density on the patch antenna, the magnitude of the electric potential on the antenna's substrate, and the electric field in the radome's shell.
This application was built using the following:RF Module
