Syngas Combustion in a Round-Jet Burner
Application ID: 14881

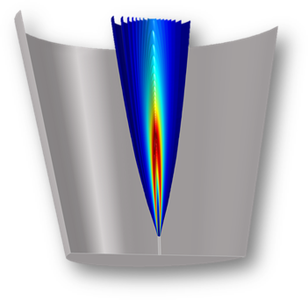

The model simulates non-premixed turbulent combustion of syngas (synthesis gas) in a simple round-jet burner.
Syngas is a gas mixture, primarily composed of hydrogen, carbon monoxide and carbon dioxide. The name syngas relates to its use in creating synthetic natural gas. In the model, syngas is fed from a pipe into an open region with a slow co-flow of air. Upon exiting the pipe, the syngas mixes and combusts with the surrounding air in a non-premixed manner. The resulting turbulent flame is attached to the burner head.
The model is solved by combining the Reacting Flow and the Heat Transfer in Fluids interfaces. The turbulent flow in the jet is modeled using the k-ε turbulence model, and the turbulent reactions are modeled using the eddy dissipation model. The resulting velocity, temperature and species mass fractions in the reacting jet are compared to experimental values.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
- COMSOL Multiphysics® and
- CFD Module and
- either the Battery Design Module, Chemical Reaction Engineering Module, Fuel Cell & Electrolyzer Module, or Liquid & Gas Properties Module and
- either the Battery Design Module, Chemical Reaction Engineering Module, Corrosion Module, Electrochemistry Module, Electrodeposition Module, or Fuel Cell & Electrolyzer Module
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
