Conductance Modeling of Flexible Organic Thin Film Solar Cell Devices

C. Carradero-Santiago1, J. Vedrine-Pauleus2
1Youngstown State University, Youngstown, Ohio, USA
2University of Puerto Rico at Humacao
Published in 2020

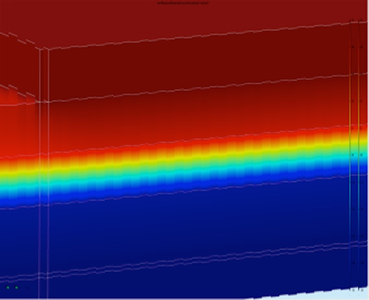

In this research work, we developed a virtual model to examine the electrical conductivity of multilayered thin films when positioned above a single layer and multilayers of graphene, and flexible polyethylene terephthalate (PET) substrate. Additional structured thin films were configure as follows: organic layers of poly(3,4-ethylenedioxythiophene) polystyrene sulfonate (PEDOT:PSS) as a hole conducting layer, poly(3-hexylthiophene-2,5-diyl) (P3HT), as p-type, phenyl-C61-butyric acid methyl ester (PCBM) as n-type, with aluminum (Al) added as a top conductor. COMSOL Multiphysics® was the primary simulation tool used to develop the virtual model, and analyze variations in electric potential and conductivity throughout the thin-film structural system. Using the AC/DC Module and Electric Currents interface we defined the geometry of each model and input properties for each tested configurations: PET/graphene/PEDOT:PSS/P3HT/PCBM/aluminum. We analyzed the model with varying thicknesses of graphene and active layers (P3HT/PCBM). This simulation allowed us to analyze the electrical conductivity, and visualize the model with varying voltage potential, and bias across the plates to better visualize the configurations useful in fabricating organic thin films relevant in solar device applications.
