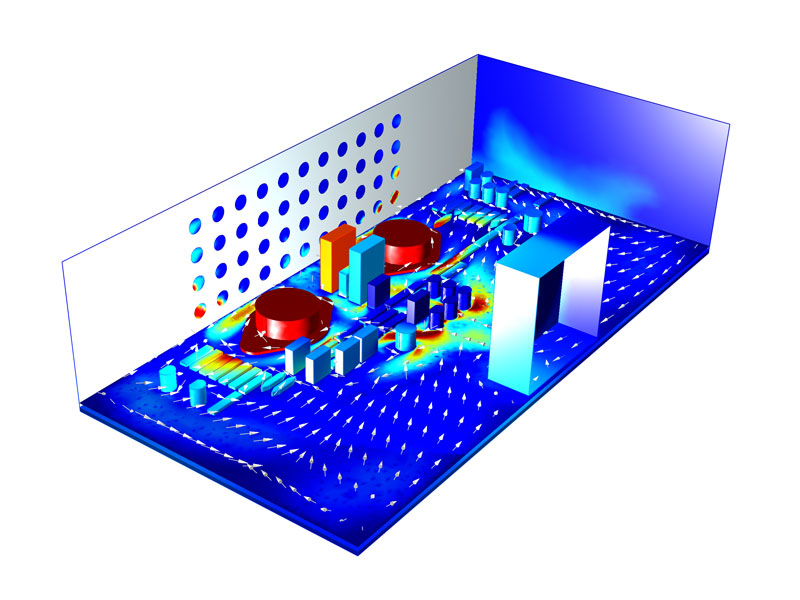

A fan located at one of the sides of an amplifier forces cooling air through its internal electronics. The picture shows a boundary color plot of the temperature distribution, and an arrow plot that indicates the direction of the flow. Evident from these results is the extent of poor cooling of the components towards the back of the amplifier. |
