Problem in simulation for displacement of design
Posted Dec 3, 2015, 4:04 a.m. EST Structural Mechanics Version 5.2 0 Replies
Please login with a confirmed email address before reporting spam
I have attached the figures but I do not understand where do I lag.

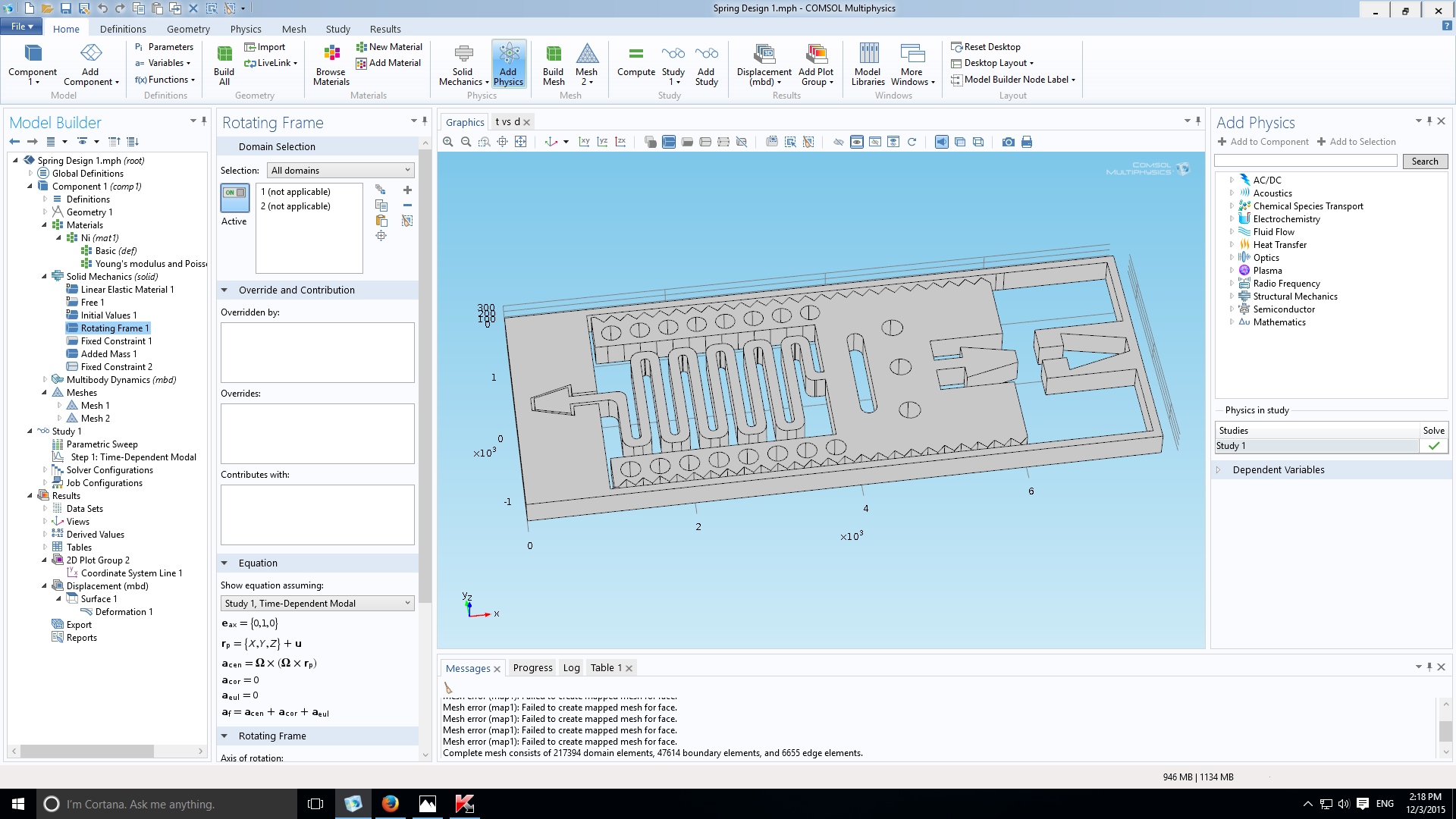

I have used Structural Mechanics, Figure 1
-Rotating Frame
-Time Dependent model in study

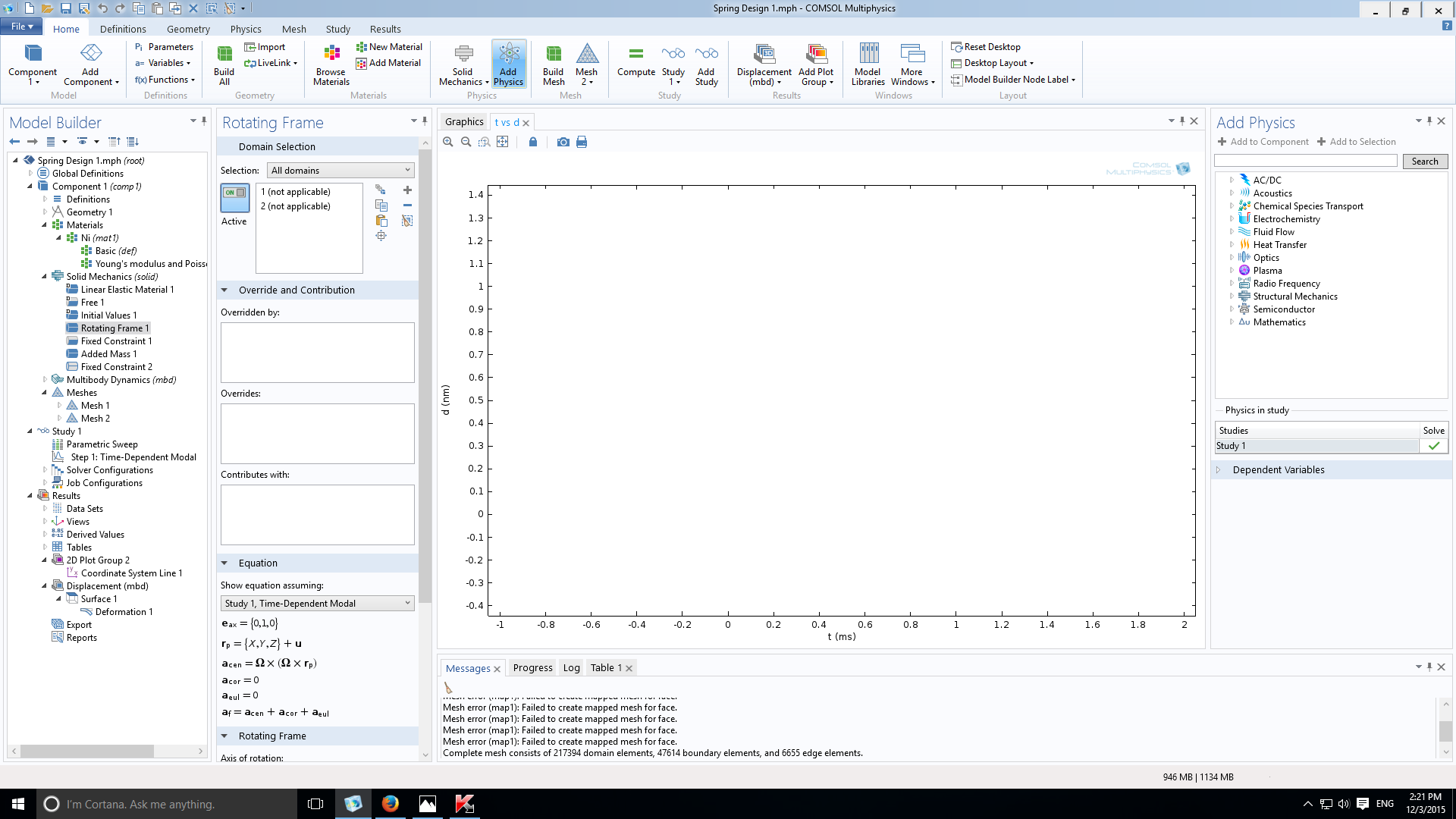

I was suppose to get the plot for time (ms) vs Displacement (mm) but I got just the axis and not the plot. Figure 2.
The design is such that, the complete system is rotating at 400rpm clockwise (or may be anticlockwise.. no issues) and is moving vertically too with approx. 1035m/s at 15g (g is gravitation (m/s^2)). So there will be counter reacting forces due to radial and vertical movement. The microspring system designed is to get latched within 100ms.
Also I do not get any latching or simulation in design. Please help. The screenshot contains the open carrots.
Attachments:
Hello Swati Rastogi
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
If you do not hold an on-subscription license, you may find an answer in another Discussion or in the Knowledge Base.
