Twisting and Bending of a Metal Frame

Application ID: 78081

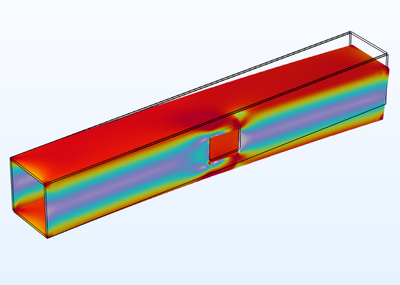

A thin-walled metal frame with a central cutout, modeled using the Shell interface, is subjected to twisting and bending.

Around the cutout the stresses are higher than the yield stress, thus the material undergoes plastic deformation over the loading history.

This model example illustrates applications of this type that would nominally be built using the following products:
