Analyzing Electric Motor and Generator Designs

Application ID: 97091

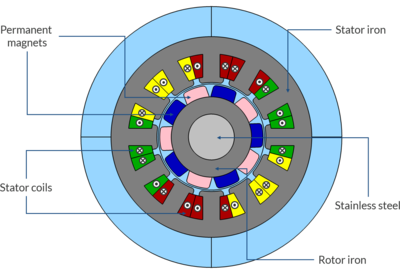

This is a primer model of a permanent magnet machine. It is a generic model that can be modified to simulate a motor or generator. It demonstrates different capabilities of COMSOL Multiphysics® to examine aspects of machine design, such as air gap magnetomotive force (MMF), torque computation, and iron losses. The model files demonstrate different analyses and compare different geometries that are built with geometry parts.

Get more information in the blog post "Analyzing Electric Motors and Generators with COMSOL®".

This model example illustrates applications of this type that would nominally be built using the following products:
