Biomechanical Model of the Human Body in a Sitting Posture

Application ID: 19497

The dynamic response of a human body in any vibration environment can be predicted using this biomechanical model. In the automobile industry for instance, this model can be used in ride quality simulation and designing vibration isolators such as seats.

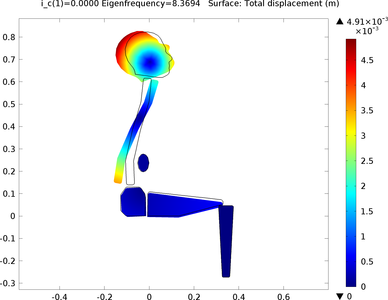

In this example, a biomechanical model of the human body is developed to evaluate the dynamic response to the vertical vibrations in a sitting posture.

This model demonstrates how the Multibody Dynamics interface can be used to model various parts and connections in a human body, as well as to study the whole body vibrations (WBV).

This model example illustrates applications of this type that would nominally be built using the following products:
