Hexagonal Plasmonic Color Filter

Application ID: 102691

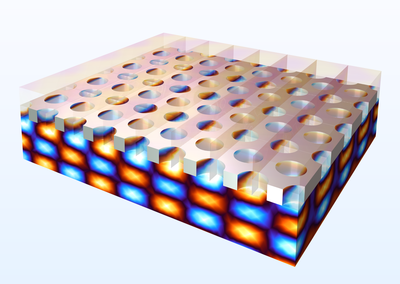

This model demonstrates how to perform simulations of an absorbing bandstop color filter, based on a hexagonal array of holes in a thin aluminum layer. The structure is hexagonally periodic but this example also shows how to set the model up as rectangularly periodic.

This model example illustrates applications of this type that would nominally be built using the following products:
