Indentation of a Cylindrical Battery Cell
Application ID: 141731
Indentation tests are commonly used to evaluate the safety of battery cells by assessing the risk of internal short circuits under external mechanical loads.

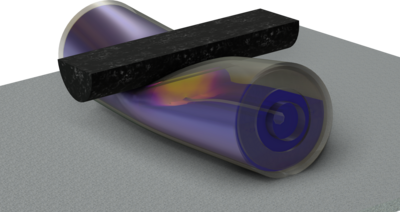

This example demonstrates how to set up such a test, in which an indenter is pressed onto a battery cell, causing large deformation of its components. The analysis is performed using an explicit dynamic approach that accounts for plasticity and contact mechanics.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
