Isotropic-Anisotropic Sample: Elastic Wave Propagation

Application ID: 78231

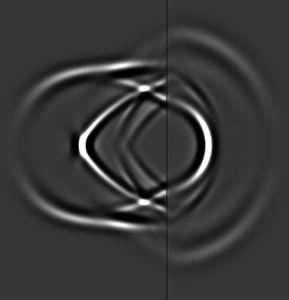

In this 2D tutorial, a test sample consists on one side of an isotropic material and on the other side of a heterogeneous anisotropic material (a transverse anisotropic zinc crystal). Elastic waves in the sample are excited by a point-like force. The model is solved with the Elastic Waves, Time Explicit physics interface.

This model example illustrates applications of this type that would nominally be built using the following products:
