Magnetic Field from Power Lines

Application ID: 108451

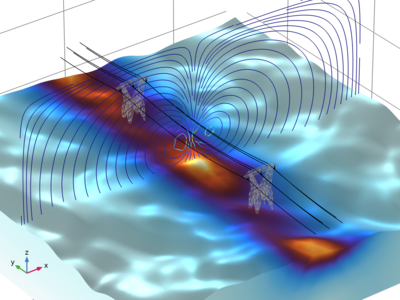

Power lines are commonly used as a means of transmitting electrical power across large distances. In this tutorial, towers transmitting high voltage three-phase AC power are modeled, and the resulting magnetic field is computed. The towers have two shielding lines.

This model example illustrates applications of this type that would nominally be built using the following products:
