Magnetic Prospecting of Iron Ore Deposits

Application ID: 3807

Magnetic prospecting is a geological exploration method that is applicable to certain types of iron ore deposits, in particular those made up of magnetite and hematite. The method consists of measuring the magnetic anomalies (changes in the earth's magnetic field) due to the presence of magnetic ores.

The Magnetic Prospecting app simulates the effect of a deposit of magnetic ore on the earth's magnetic field and predicts the measured anomaly at specified measuring points on the surface. You can import heightmap images or digital elevation model (DEM) files to define the orography of the region as well as the geomagnetic field data for the specified location.

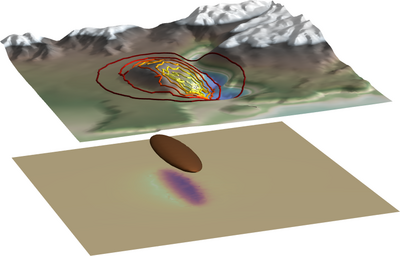

The computation generates a plot of the magnetic field on the earth's surface as well as numerical data of the expected anomaly at specified measurement locations in the region.

This model example illustrates applications of this type that would nominally be built using the following products:
