Mechanical Precession for the Axle of a Bicycle Pedal

Application ID: 88531

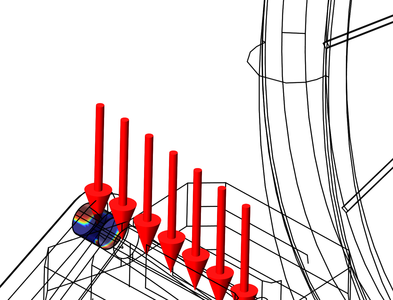

Mechanical precession prevents bicycle pedals from falling off. The model captures this effect using a multibody dynamics simulation together with a contact analysis. A friction coefficient is associated with the contact in order for the model to capture the effect.

This model example illustrates applications of this type that would nominally be built using the following products:
