Optimization of a Tesla Microvalve

Application ID: 14513

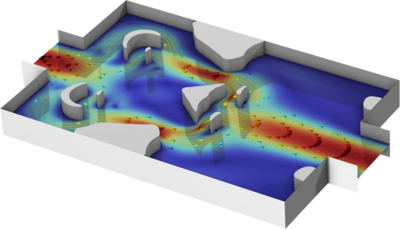

This model performs a topological optimization for a Tesla microvalve. A Tesla microvalve inhibits backwards flow using friction forces rather than moving parts. The design can be optimized by distributing a specific amount of material within the modeling domain. The goal is to maximize the ratio of the pressure drop for the forwards and backwards flow across the device.
