Sierpinski Fractal Monopole Antenna

Application ID: 12721

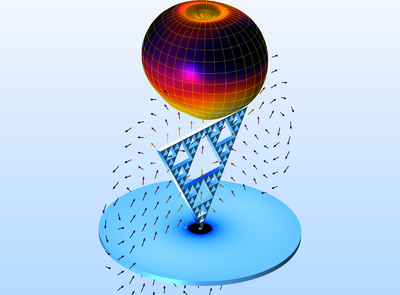

A fractal is a mathematical form showing self-repeating patterns. By virtue of its geometrical properties, a fractal structure can generate multiple resonances in RF applications. This antenna model uses a 3rd order Sierpinski triangle and the calculated S-parameters shows good input matching at the higher order resonances.
