Spiral Slot Antenna

Application ID: 12315

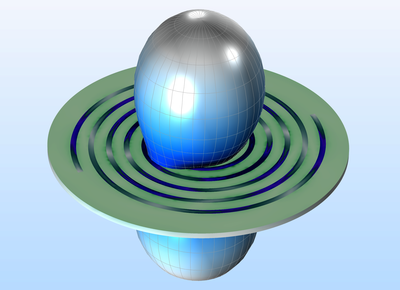

A spiral slot antenna provides a conformal design and can be used for communication, sensing, tracking, positioning, and many applications in different microwave frequency bands due to its wide-band frequency response. This model shows how to build a spiral geometry using parametric curves, and computes S-parameters and far-field patterns.

This model example illustrates applications of this type that would nominally be built using the following products:
