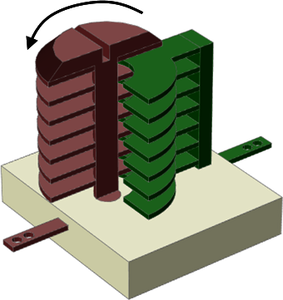

A trimmer capacitor has a variable capacitance. One way of obtaining this is to use parallel facing electrodes with a variable overlap area. In this example, the capacitance can be changed by turning one electrode using a screwdriver. Typically a linear angular response is desired.
Trimmer capacitors are often used in high frequency applications, for example for frequency tuning of RF and microwave filters.
This model example illustrates applications of this type that would nominally be built using the following products:
however, additional products may be required to completely define and model it. Furthermore, this example may also be defined and modeled using components from the following product combinations:
The combination of COMSOL® products required to model your application depends on several factors and may include boundary conditions, material properties, physics interfaces, and part libraries. Particular functionality may be common to several products. To determine the right combination of products for your modeling needs, review the Specification Chart and make use of a free evaluation license. The COMSOL Sales and Support teams are available for answering any questions you may have regarding this.
