Maximum values of Different lines in Postprocess

Posted Mar 29, 2011, 7:19 a.m. EDT Results & Visualization Version 4.1 3 Replies

Yang Yulong
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

my 2d model has been solved, and 21 additional lines were created on the domain (surface) by " cut line 2D" from "Results" .
Now, I want to get the maximum value of each line respectively, how can I make this?

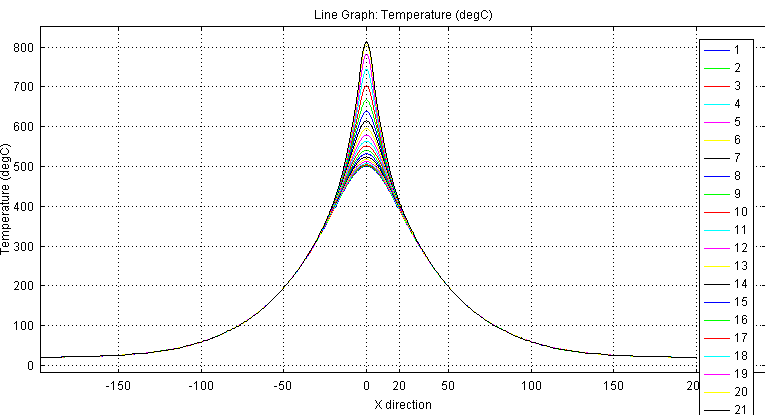

Attached graph was plotted from these 21 parallel lines, my work is to non-dimensional-normalized each line,
obtain the ratio of temperature to the peak value.

It's already known that with a predefined Probe or maximum coupling variable, one can get the maximum from defined boundaries, which is based on condition that all these lines (boundaries) have already been made in geometry beforehand. But this do not help for my problem.

Any suggestions will be appreciated.
Best regards

3 Replies Last Post Mar 30, 2011, 1:38 a.m. EDT
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Mar 29, 2011, 3:41 p.m. EDT
Hi

I assume you could make a maximum "derived value" for one line, then duplicate it 24 times, and fill a table. If you need these values for futer processing, one must define them as a variable, probably 24 of them, a bit a hassle.

One can aslo make a cut line in 2D, and refer to a familiy of cut line (NOTE:often the range for the family must be negative, if the original line is vertical, going up, as then its "normal" is in the counterclockwise direction)

It requires some typing

--
Good luck
Ivar
Hi I assume you could make a maximum "derived value" for one line, then duplicate it 24 times, and fill a table. If you need these values for futer processing, one must define them as a variable, probably 24 of them, a bit a hassle. One can aslo make a cut line in 2D, and refer to a familiy of cut line (NOTE:often the range for the family must be negative, if the original line is vertical, going up, as then its "normal" is in the counterclockwise direction) It requires some typing -- Good luck Ivar
Yang Yulong
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Mar 29, 2011, 10:10 p.m. EDT
Thanks ,Ivar

what should I do if i want to refer to the cut line family?

Best regards!
Thanks ,Ivar what should I do if i want to refer to the cut line family? Best regards!
Ivar KJELBERG COMSOL Multiphysics(r) fan, retired, former "Senior Expert" at CSEM SA (CH)
Send Private Message Flag post as spam

Please login with a confirmed email address before reporting spam

Posted: 1 decade ago Mar 30, 2011, 1:38 a.m. EDT
Hi

Good question, from my knowledge you can only refer to variables, sou then you need to define 24 max() operators, and 24 variables, or via the derived values, these you can dump ina table and extract to another software for further processing, which is sometimes easier

--
Good luck
Ivar
Hi Good question, from my knowledge you can only refer to variables, sou then you need to define 24 max() operators, and 24 variables, or via the derived values, these you can dump ina table and extract to another software for further processing, which is sometimes easier -- Good luck Ivar
