Oil filter simulation
Posted Feb 4, 2014, 2:05 a.m. EST Fluid & Heat Version 4.4 0 Replies
Please login with a confirmed email address before reporting spam
I am currently looking into a simulation/verification model of an oil removal filter. I have a gas with small oil droplets/particles in it. In the real world application the gas is passed trough a filter (Porous media) and the majority of the oil is removed.
However I can't seem to get my head around how to include all of the relevant effects in the problem:
- Turbulent fluid and gas flow
- Properties of the filter media
- Removal of the oil from the gas
- Clustering/formation of ever larger oil droplets

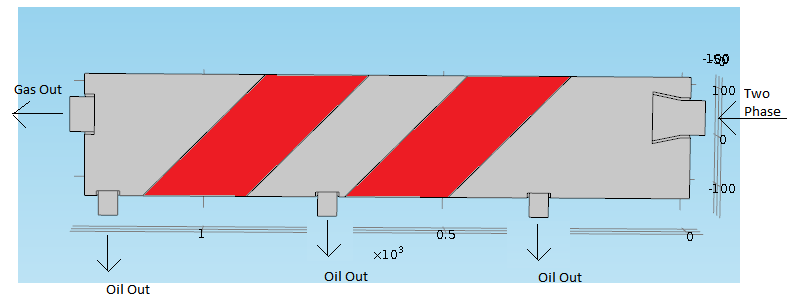

I have attached a small drawing. The red areas are the filter element.
Do any of your have a good/brilliant idea on how to approach the problem ? The two-phase flow physic and the Porous media physic can't be coupled via the multiphysics node.
Best regards.
Attachments:
Hello Simon Stubkier
Your Discussion has gone 30 days without a reply. If you still need help with COMSOL and have an on-subscription license, please visit our Support Center for help.
