Geometric Parameter Optimization of a Bracket
Application ID: 87851

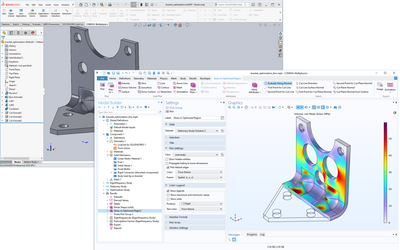

This example minimizes the mass of a bracket that is synchronized from SOLIDWORKS® via the LiveLink™ interface.
There are limits both for the lowest natural frequency, and for the maximum stress in a static load case. The size and position for a number of geometrical features is changed to optimize the mass, while several geometrical constraints are enforced to maintain the design intent.
