Simulation of a Counterweight Trebuchet

Application ID: 55381

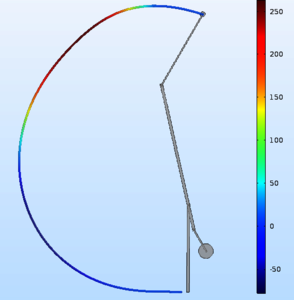

In this multibody dynamics model of a simple counterweight trebuchet, a parametric sweep is used to study throwing distance as function of the sling length.

For more details on performing a multibody analysis of a counterweight trebuchet, see this blog post: What Is the Physics Behind a Counterweight Trebuchet?

This model example illustrates applications of this type that would nominally be built using the following products:
