Shape Optimization of a Rectangular Loudspeaker Horn in 3D

Application ID: 102221

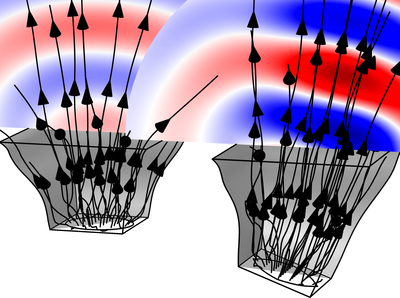

This model demonstrates how to use the Control Function feature to perform shape optimization on a rectangular horn for an improved on axis response. The results of the initial design are exported to a new component via a Filter dataset. Further, the off-axis spatial response is improved using the Free Shape Boundary and Transformation shape optimization features.
