Modeling Incident Radiation in Radiative Heat Transfer

February 3, 2022

When dealing with radiative heat loads in a thermal model, we need to be careful to understand how the incident thermal radiation interacts with surfaces. If dealing with a system that does not have any refractive elements, then the capabilities of the Surface-to-Surface Radiation interface within the Heat Transfer Module give us modeling capabilities to handle both diffuse and specular reflections, absorption, and transmission. Let’s learn more…

This is the second blog post in a series on modeling radiative heat transfer using the COMSOL Multiphysics® software. Read Part 1 and Part 3 here.

Infrared Radiation Incident on a Surface

We are dealing with graybody radiation, so we start with the relationship: \alpha + \rho_d +\rho_s = 1 and describe the surface behavior in terms of two properties:

  1. Emissivity, \epsilon, which is the ratio of radiation emitted by a surface as compared to a perfect emitter, as introduced in our blog post on modeling emissivity
  2. Diffuse reflectivity, \rho_d

The surface absorptivity equals emissivity, \alpha = \epsilon and thus the specular reflectivity is \rho_s = 1-(\alpha + \rho_d). An absorptivity of zero means all radiation is reflected, and \alpha = 1 would mean that all radiation is absorbed. Although we can only approach these limits for true materials, sometimes the concept of a perfect absorber or perfect reflector (either diffuse or specular) is useful for modeling purposes.

The figure below shows the cases of incident collimated radiative flux:

  • Being perfectly absorbed
  • Being diffusely reflected with the possibility of some absorption
  • Being specularly reflected with the possibility of some absorption
  • Experiencing absorption as well as diffuse and specular reflection

A figure displaying the cases of incident collimated radiative flux on a surface for various combinations of absorptivity and diffuse reflectivity.
A beam of collimated radiation incident on a surface for various combinations of absorptivity (emissivity) and diffuse reflectivity. Emission, due to a non-zero surface temperature, is omitted from these figures.

Modeling of specular reflection requires using the Ray Shooting method within the Surface-to-Surface Radiation interface. When this method is used, the Opaque Surface feature lets us enter diffuse reflectivity and surface emissivity, and the surface emissivity (absorptivity) can include an angular dependence. The other methods, the Direct Area Integration method (which is used only for smaller models without any obstructions to view factors) and the Hemicube method, do not admit specular reflection. Thus, they offer solely a Diffuse Surface feature, which lets us enter emissivity and compute the diffuse reflectivity from \rho_d = 1-\epsilon. For the example we are about to look at, we will use solely the Ray Shooting method, since it can address all the cases we are interested in.

To gain intuition, let us consider a thermal model of a vacuum chamber as shown below. There are two parts to this chamber, with the smaller containing a hot object that emits thermal radiation, infrared (IR) light. A narrow opening will let a little bit of this radiation through to illuminate the other part of the chamber. We will look at how this incident radiation is absorbed and reflected by an object placed at the center. Since the opening is long and narrow, the radiation passing through is nearly collimated.

A diagram of a vacuum chamber that consists of two sections and a small opening.
A vacuum chamber with two sections and a small opening that allows some nearly collimated thermal radiation through.

The walls of the chamber have the emissivity (absorptivity) set to one and are held fixed at a temperature of 0 K, thus acting as perfect absorbers of the radiation reflected from the object at the center. Since we are only interested in computing the interaction of the incident radiation with the surfaces and do not want to model any other modes of heat transfer, such as conductive heat transfer within the solid, we can use solely the Surface-to-Surface Radiation interface and omit the Heat Transfer in Solids interface from our model.

We will also fix the temperature of the target part at 0 K, so that it does not emit any radiation by itself. Although this is a bit artificial, it lets us focus solely on how the radiation emitted from the hot part will be absorbed and reflected off of our target part.

A screenshot of the model tree on the left and Opaque Surface Settings window on the right, with the Temperature option set to 0 K.
Setup for a mixed specular/diffuse surface. Setting the temperature to 0 K means the surface will not itself radiate.

The plots below show the radiation reflected off of the bottom surface and absorbed by the chamber walls under different combinations of settings. As we can see, the patterns differ depending on the absorptivity and diffuse reflectivity.

Four plots depicting the thermal radiation on the walls of the chamber. From left to right: perfect absorption, diffuse reflection, specular reflection, and mixed diffuse/specular reflection.
Plot of the thermal radiation on the walls of the chamber. This illustrates how the thermal radiation is reflected off of the target part. From left to right: perfect absorption, diffuse reflection, specular reflection, and mixed diffuse/specular reflection.

Modeling of Specular Reflection from Curved Surfaces

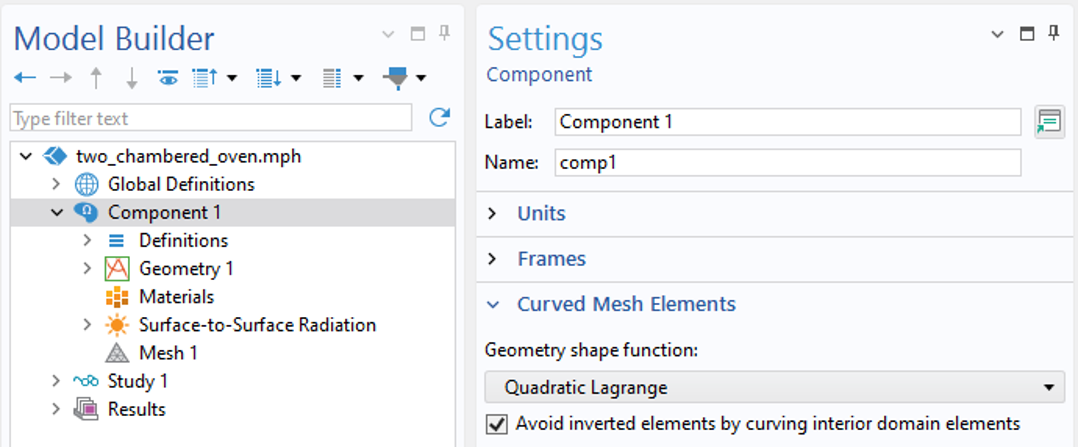

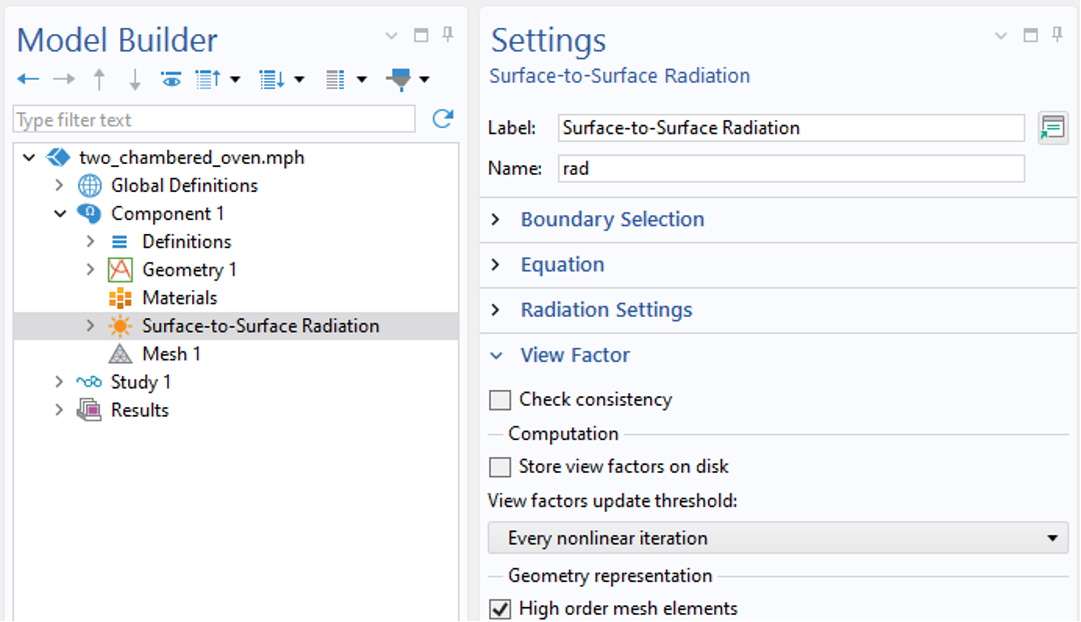

Let us next modify our model and place a perfectly specular round object at the center, as shown in the image below. The incident radiation will be reflected onto the walls of the surrounding chamber, but to model this reflection accurately requires increasing the discretization order. The default linear discretization of the Surface-to-Surface Radiation interface would treat the round object as faceted, with each element boundary representing a small flat mirror. This would lead to reflections that are just in a few directions. As the element order is increased, the distribution of the reflected radiation becomes more smooth.

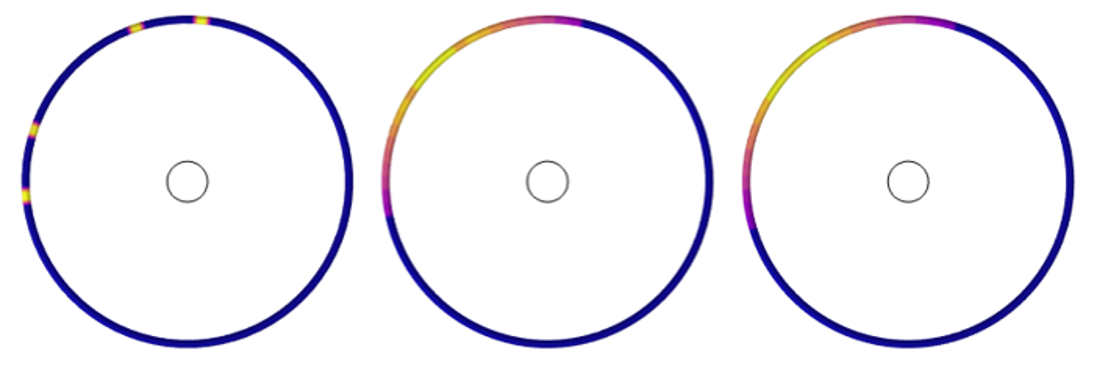

Three plots depicting reflected radiation away from a small, circular object in the center of the chamber.
Plots of the reflected radiation away from a small circular object, using linear, quadratic, and cubic discretization.

Modeling Semitransparency

Finally, let us modify our example and consider a thin and flat object that is semitransparent, meaning that it will absorb, reflect, and transmit radiation. Under the restrictions that the refraction is unimportant, and that the object is thin, this case can be addressed via the Semitransparent Surface feature when using the Ray Shooting method. This feature additionally introduces a Surface Transmissivity property, \tau, which describes what fraction of the incident radiation is specularly transmitted: \alpha + \rho_d +\rho_s +\tau = 1. An additional Critical Angle setting provides a threshold below which no transmission will occur, only specular reflection.

A screenshot of the model tree on the left and Semitransparent Surface Settings window on the right.
The Semitransparent Surface feature splits the incident radiation into a reflected and transmitted component.

We can observe, in the image below, how setting emissivity and diffuse reflectivity to zero and transmissivity to 0.5 will lead to a 50/50 split of the incident radiation with specular reflection. If there is any absorption by the surface itself, this will be treated as a boundary heat load.

A plot that depicts that incident radiation on a semitransparent surface is split into a reflected and transmitted entity.
Incident radiation on a semitransparent surface is split into a reflected and transmitted component.

It is important to note the refraction is not accounted, so no lensing effects can be modeled. To model rays both reflecting and refracting through dielectric materials, the functionality of the Ray Optics Module can be used.

Closing Remarks

We have looked at the reflection of radiation off of opaque and semitransparent surfaces and the modeling considerations for simulating curved reflecting boundaries. Keep in mind that absorption and reflection of radiation happens in concert with emission of radiation from surfaces at finite temperature, as addressed in Part 1 of this blog series on modeling radiative heat transfer: “Modeling Emissivity in Radiative Heat Transfer“.

What we have not addressed so far is exactly how the software computes the radiative exchange between surfaces. To understand this computation it is necessary to go over the concept of view factors, the topic of the next article. Stay tuned!
